PVC pipe production machine
PVC pipe extruder machine /PVC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

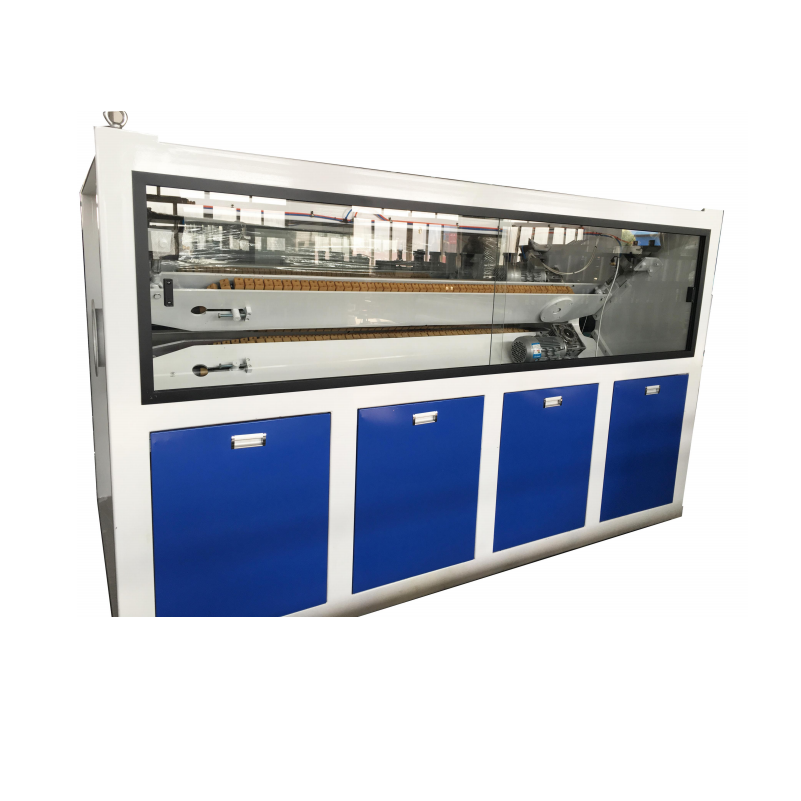

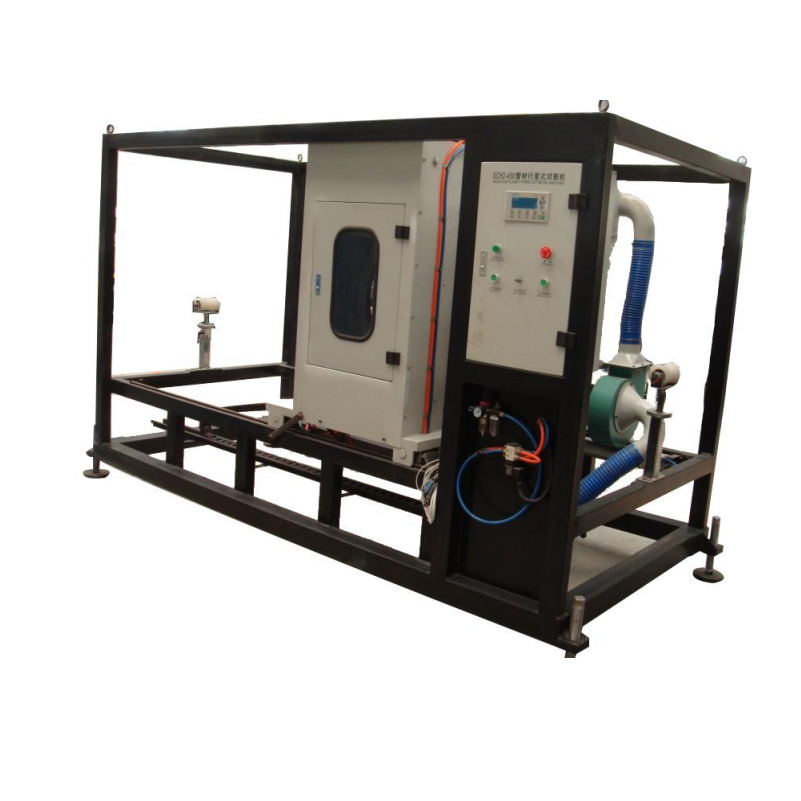

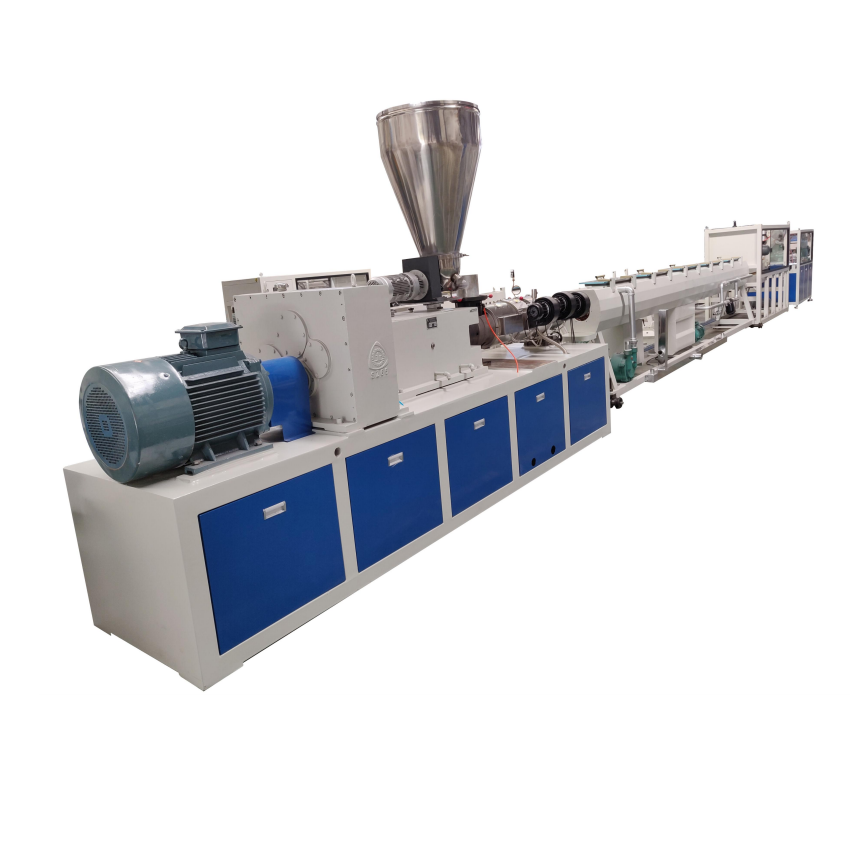

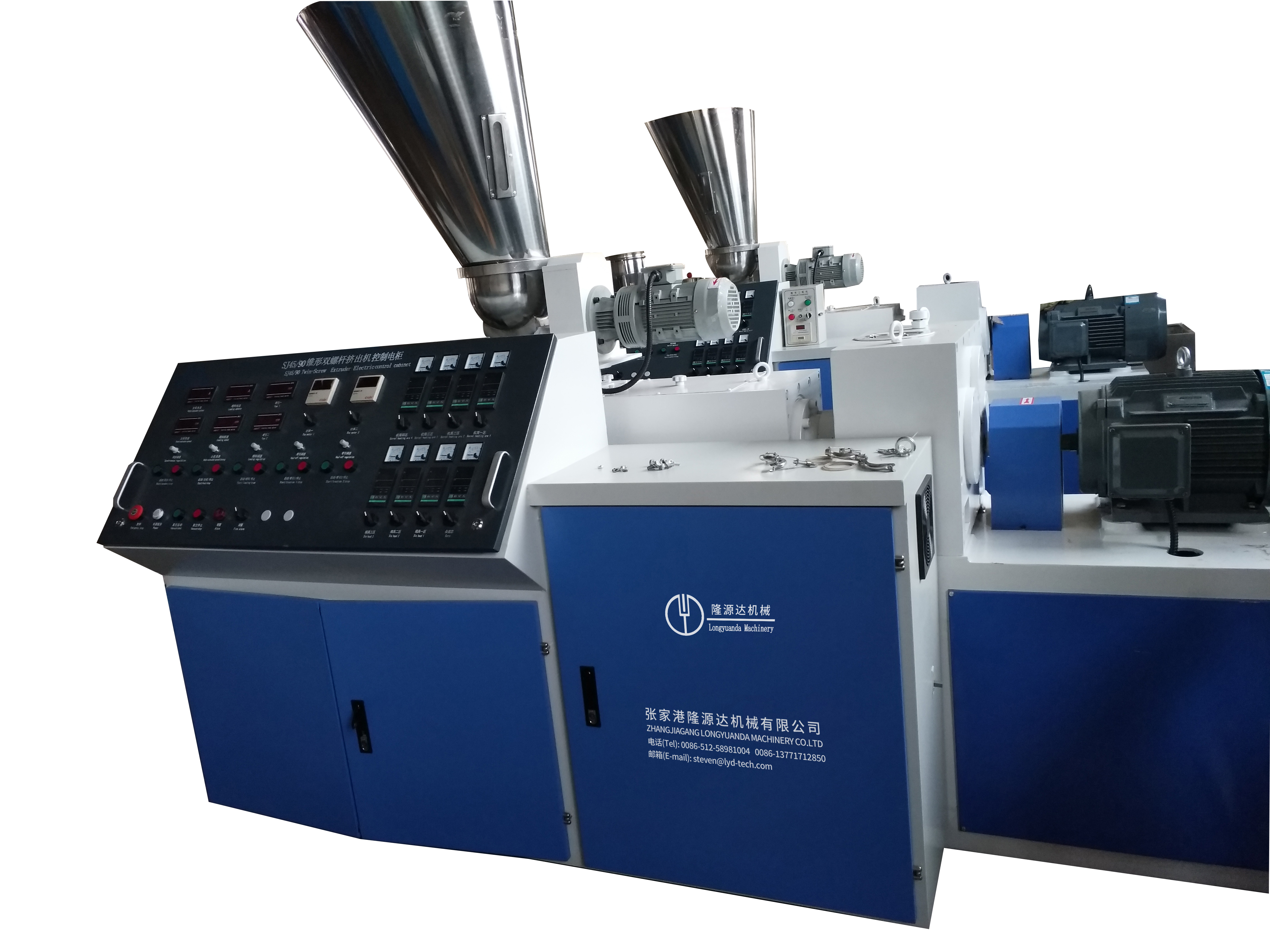

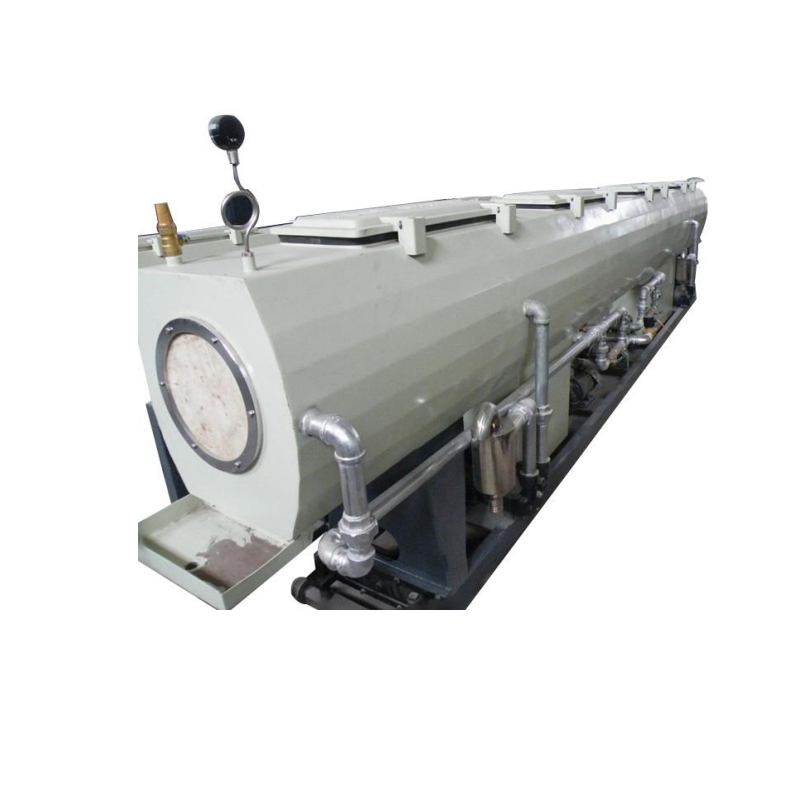

This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.
Our machine can produce the PVC pipe with diameter from 16mm to 630mm
Main parameter of PVC pipe making machine:
| Mode | Pipe range | extruders | Max.output | Max. speed | Total power | Line length |
| (mm) | (kg/h) | (m/min) | (kw) | (m) | ||
| PVC-50×2 | 16-50 | SJSZ51/105 | 150 | 6m | 60w | 20m |
| PVC-63 | 16-63 | SJSZ45/90 | 120 | 10m | 45w | 20m |
| PVC-110 | 50-110 | SJSZ51/105 | 150 | 6m | 60w | 24m |
| PVC-160 | 63-160 | SJSZ65/132 | 300 | 5m | 100w | 24m |
| PVC-250 | 110-250 | SJSZ80/156 | 400 | 3.5m | 120w | 28m |
| PVC-315 | 160-315 | SJSZ80/156 | 400 | 3m | 160w | 28m |
| PVC-450 | 250-450 | SJSZ92/188 | 700 | 1.5m | 200w | 36m |
| PVC-630 | 315-630 | SJSZ92/188 | 700 | 0.9 | 230kw | 36m |
