PE pipe production machine
onfiguration of PE pipe extruder machine:

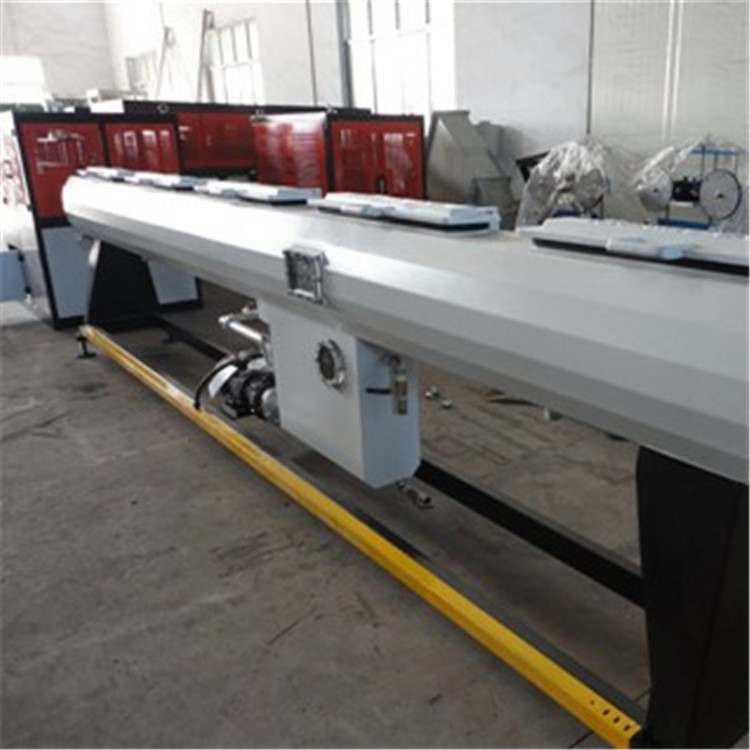

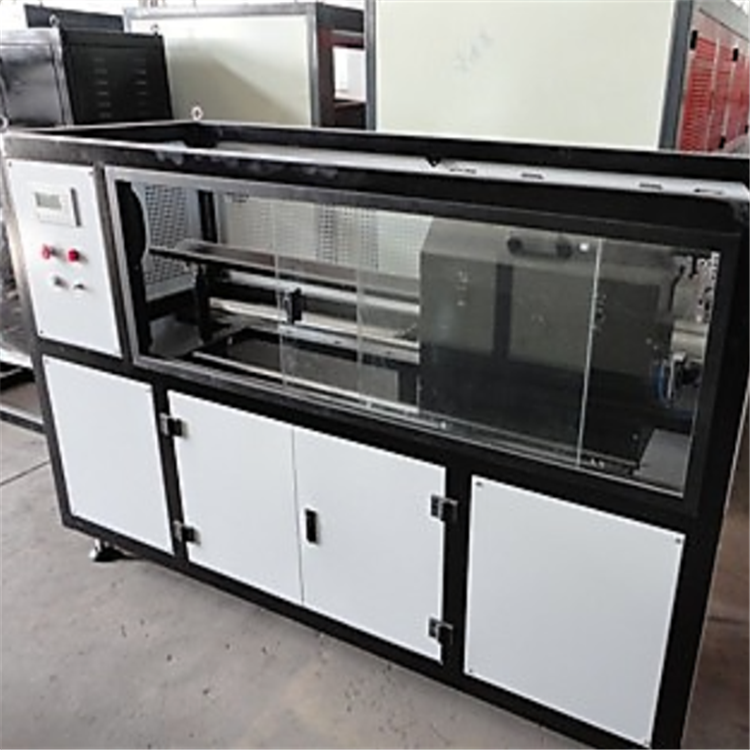

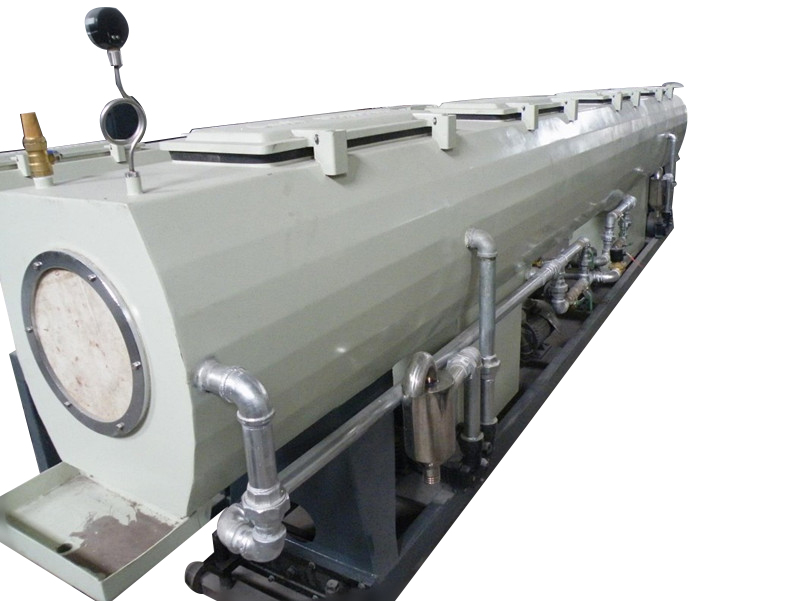

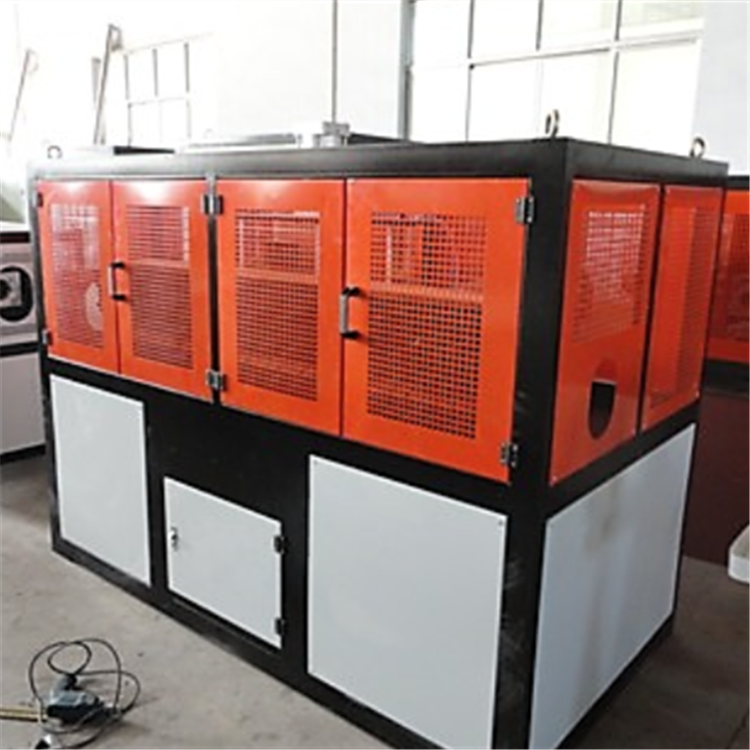

It contains single screw extruder, mould, single screw extruder (for mark line), calibrating tank, cooling tank, haul-off, cutter and stacker.
Application:

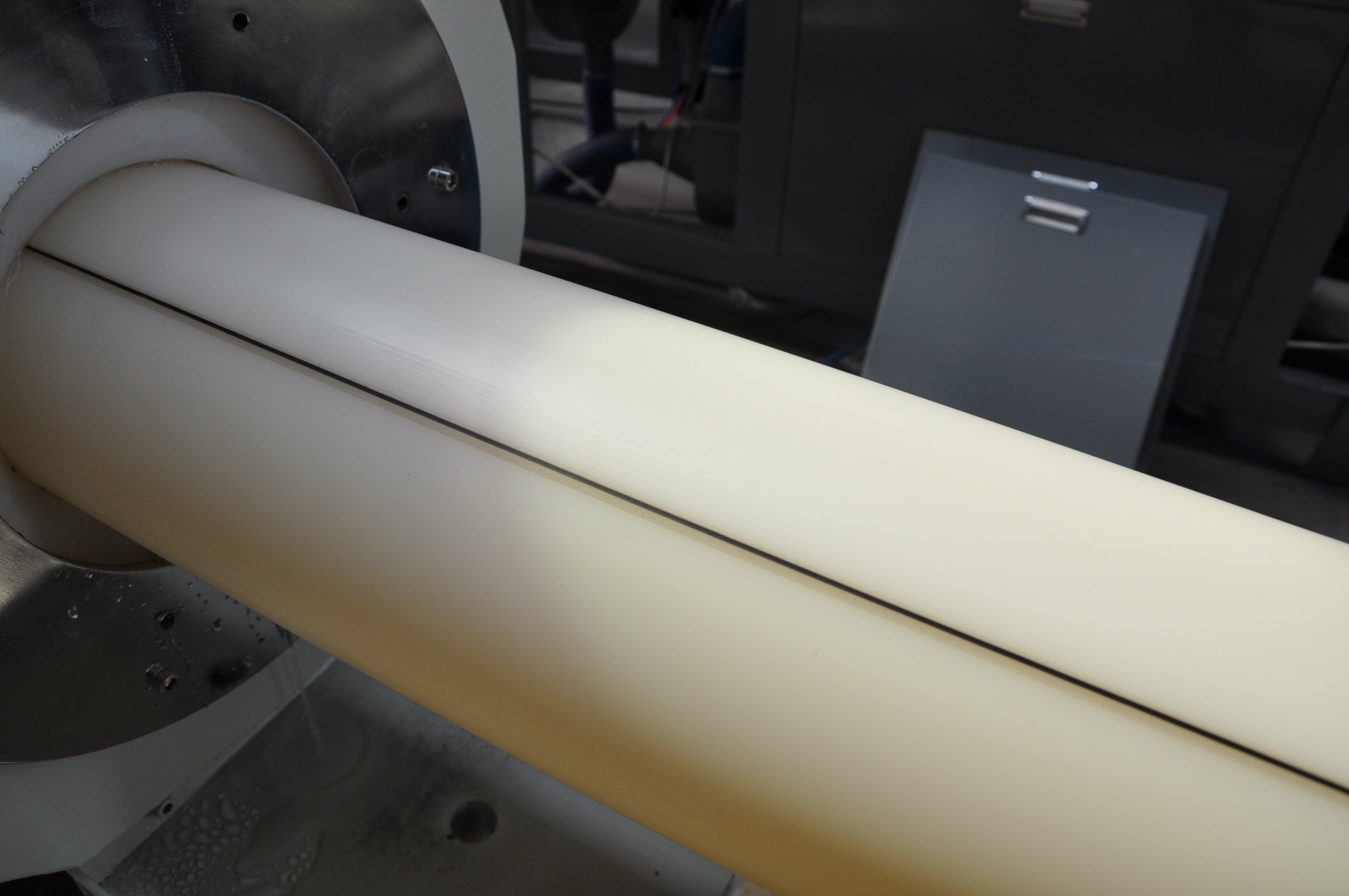

It is mainly used to produce PE water pipe, gas pipe, drain pipe and so on.
Description of PE pipe extruder machine:

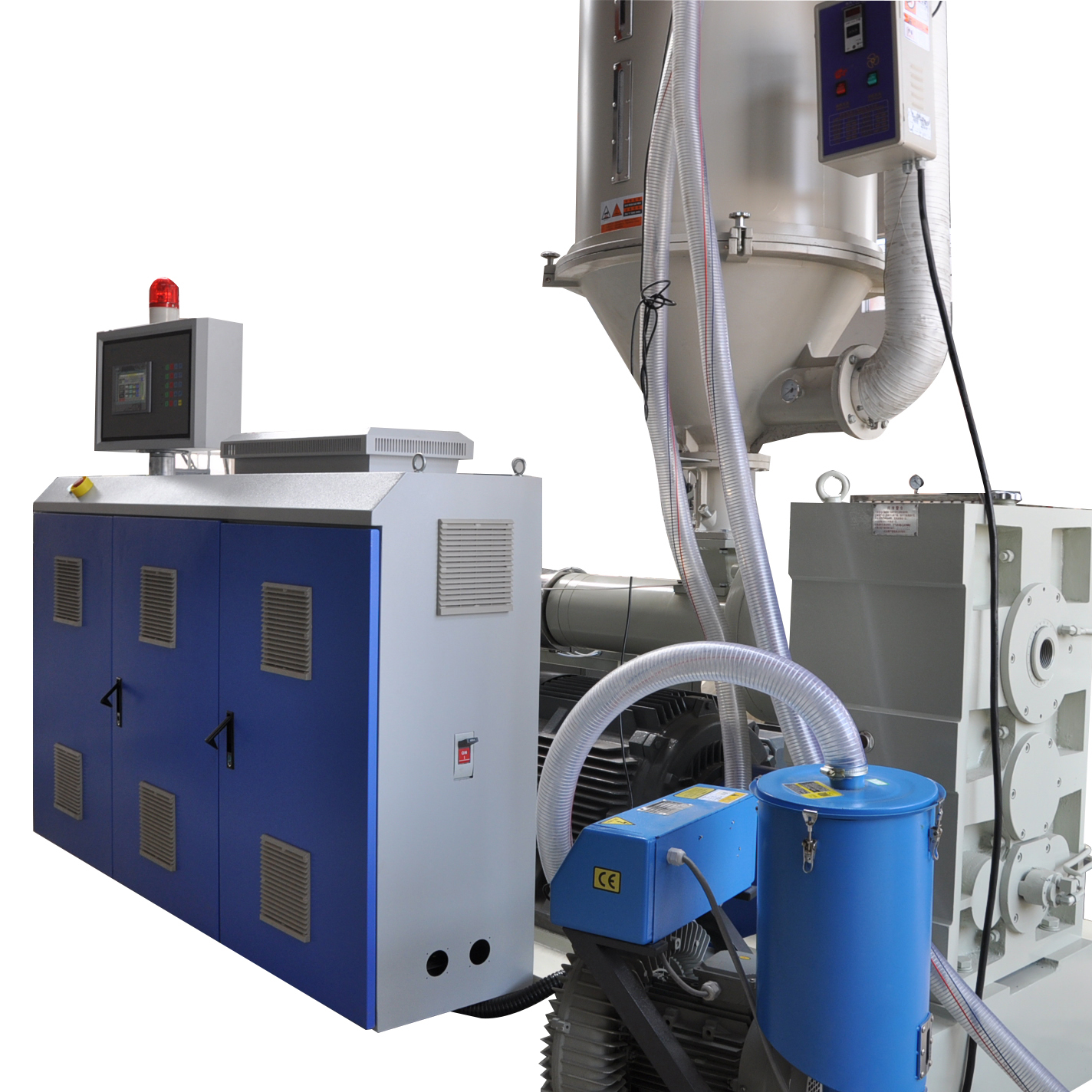

Single screw extruder, very suitable to process PE resin with high capacity, max capacity can reach 1000kg/h
The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
Diameter range is 16mm-800mm, which can be changed into inch standard to meet clients’ special requirement.
Main technical parameters of PE pipe production machine:
| Pipe range | 16-63mm | 20-110mm | 75-160mm | 90-250mm | 110-315mm | 160-450mm | 315-630mm | 500-800mm |
| Extruder | Ø45mm | Ø60mm | Ø75mm | Ø75mm | Ø90mm | Ø90mm | Ø120mm | Ø150mm |
| Extruder power | AC30kw | DC75kw | DC110kw | DC110kw | DC160kw | DC160kw | DC280kw | DC335kw |
| Extrusion capacity | 60-100kg | 100-150kg | 250-300kg | 250-300kg | 350-400kg | 350-400kg | 650-700kg | 850-900kg |
| Max. production speed | 10m/min | 6m/min | 6m/min | 6m/min | 3 m/min | 1.2m/min | 0.9m/min | 0.7m/min |
